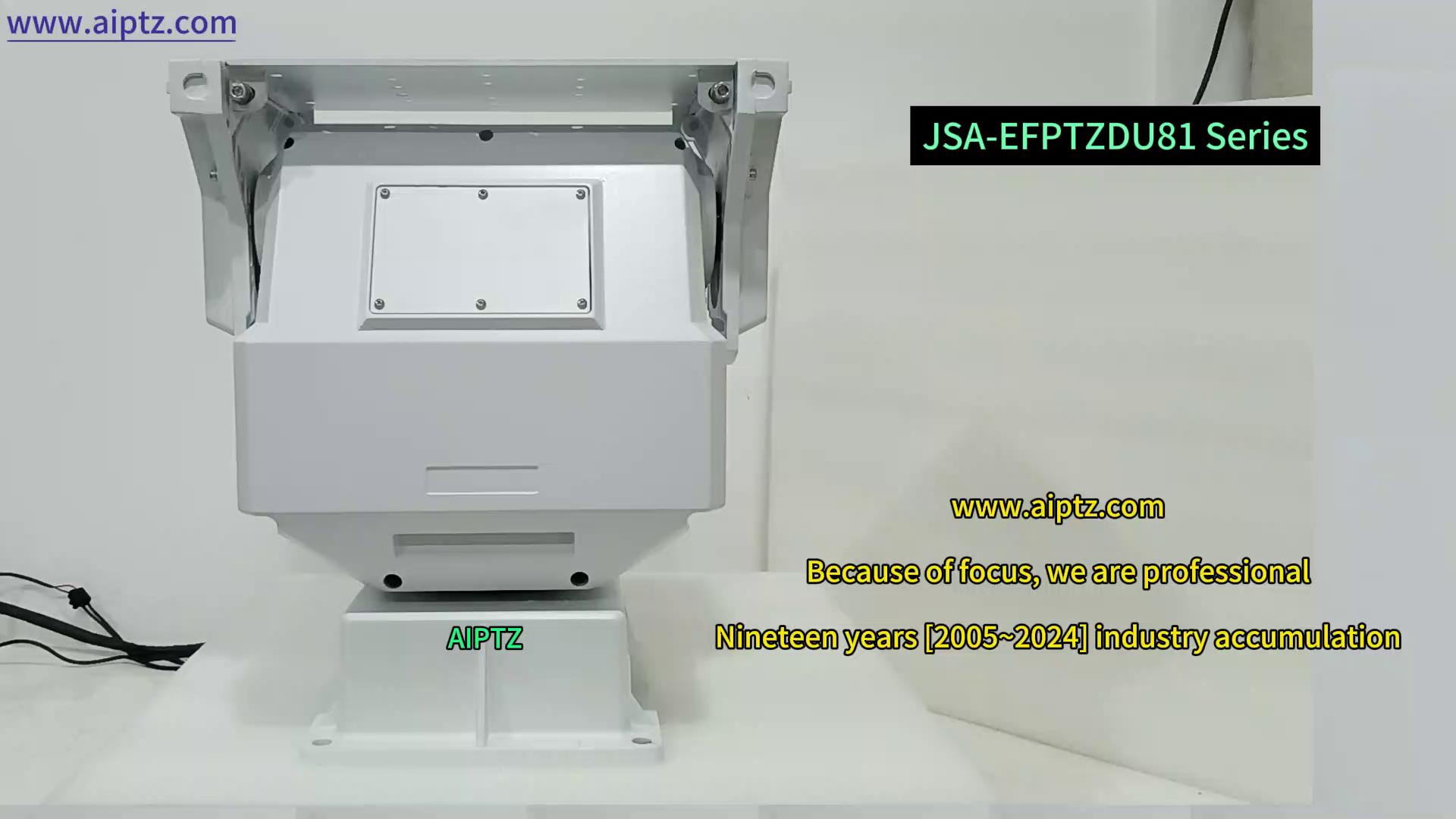

30~60Kg Vertical single-axis pan tilt head,tilt -80°～80° optional RS485/RS422 Pelco PTZ protocol


Collection：0
Net weight：≈21kg
Max load：≤30~80kg
Delivery cycle：6~12W/D
Order series：JSA-EFPTZDU81AT Series
Detail




█ Specifications


Model

JSA-EFPTZDU81AT Series

Max. Load

30~80kg

Bearing mode

Top load/(side load compatible)

Driving mode

Worm gear drive, timing belt drive hybrid mode

Tilt Angle

-85°~85°

Tilt Speed

0.1°～7°/S or 0.01°～7°/S

Preset Accuracy

±0.1°，[Customizable±0.01°]

Preset

≤200

Auto cruise

Support

Interfaced
RS485, optional RS422

Protocol

Pelco_D

Baud Rate

9600

Address

1

Bottom cable

DC24V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Top cable

DC24V*1、DC12V*1、RS422*1、RJ45*1、GND*1；Optional other lines can be customized on demand

Angle return

Support Real-time angle and orientation feedback

Input voltage range

DC24V±20% 50/60HZ；≤85W(No heating element)；Optional ≤115W(With heating element)

Operating temperature

Standard configuration：-25℃～+65℃；Optional With heating element-35℃~+65℃

Working humidity

<90%RH

Lightning protection

Input voltage range supply ≤4000V, communication and video signal ≤2000V

Prevention grade

Standard configurationIP66; Optional Anti-salt spray treatment

Weight

≈21kg

Size

340mm×206 mm×390mm


█ Size

pan tilt head


█ Order model


Model
Load/Kg
Angle range
Speed range
Preset Accuracy
Angle feedback
Top outlet
Bottom cable entry
Tilt
Tilt
JSA-EFPTZDU81AT30
30
-85°~85°
0.1°～7°/S
±0.1°
Query postback DC24V*1
DC12V*1
RS485*1
RJ45*1[1000Mb]
GND*1
      		DC24V*1


RS422*1

RJ45*1[1000Mb]

GND*1

JSA-EFPTZDU81AT40
40
-60°~60°
JSA-EFPTZDU81AT60
60
-45°~45°
JSA-EFPTZDU81AT80
80
-30°~30°
JSA-EFPTZDU81ATH40
40
-60°~60°
0.01°～7°/S
±0.01°
Real-time postback
Project customization
Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs.


█ Package weight

pan tilt motorized
